The automotive industry often faces the perception that certain foundational technologies have reached a plateau of development, particularly in the realm of high-performance materials. Carbon fiber, a composite material celebrated for its exceptional strength-to-weight ratio, is frequently viewed as a mature technology with little room for radical innovation. However, McLaren Automotive is challenging this narrative through the implementation of Automated Rapid Tape (ART), a sophisticated manufacturing process that signals a significant evolution in how carbon fiber components are designed and produced. By adapting techniques originally developed for the aerospace sector, McLaren is enhancing the structural integrity of its vehicles while simultaneously optimizing production efficiency and material sustainability.
The Technical Foundation of Automated Rapid Tape Technology
At its core, Automated Rapid Tape (ART) represents a departure from traditional "prepreg" carbon fiber manufacturing. In conventional methods, sheets of carbon fiber fabric pre-impregnated with resin are manually or semi-automatically cut and layered into a mold. This process, while effective for creating complex shapes, often results in significant material waste due to offcuts and limits the precision with which engineers can orient fibers to handle specific load paths.
ART technology utilizes carbon fiber in the form of narrow, ribbon-like tapes. These tapes are applied via a robotic system that allows for extreme precision in placement and orientation. Unlike the aerospace application of this technology—where large, stationary components like aircraft fuselages or wing spars are addressed by moving deposition heads—McLaren has inverted the process. In the McLaren Composites Technology Centre (MCTC) in Sheffield, the deposition heads remain relatively constrained while the component being manufactured is mounted on a multi-axis rotating and moving bed. This "moving job" approach allows for the creation of smaller, more intricate automotive geometries that would be difficult to achieve with standard aerospace configurations.
The primary engineering advantage of ART lies in its ability to concentrate fibers exactly where they are needed. By layering the tape in specific directions, engineers can reinforce areas of high stress, such as suspension mounting points, joints, or chassis edges, while minimizing material in low-stress regions. This granular control results in structures that are not only lighter but also demonstrate superior stiffness and durability compared to those made with uniform fabric layers.
A Chronology of McLaren’s Carbon Fiber Innovation
McLaren’s commitment to carbon fiber is not a recent development but a core pillar of its engineering identity spanning over four decades. The integration of ART is the latest chapter in a timeline defined by material science breakthroughs.
The journey began in 1981 with the introduction of the McLaren MP4/1 Formula 1 car. Designed by John Barnard, the MP4/1 featured the first carbon fiber composite monocoque in racing history. At the time, skeptics doubted the material’s ability to protect drivers during high-speed impacts, but the MP4/1 proved its superiority in both performance and safety, eventually forcing the entire grid to adopt the technology.
In 1993, the company transitioned this expertise to the road with the McLaren F1. It was the first production road car to utilize a full carbon fiber monocoque, setting a benchmark for supercars that would last for decades. This was followed in 2011 by the MP4-12C, which introduced the Carbon MonoCell. This innovation was crucial because it demonstrated that carbon fiber chassis could be produced at a higher volume and lower cost than the hand-laid tubs of the 1990s.

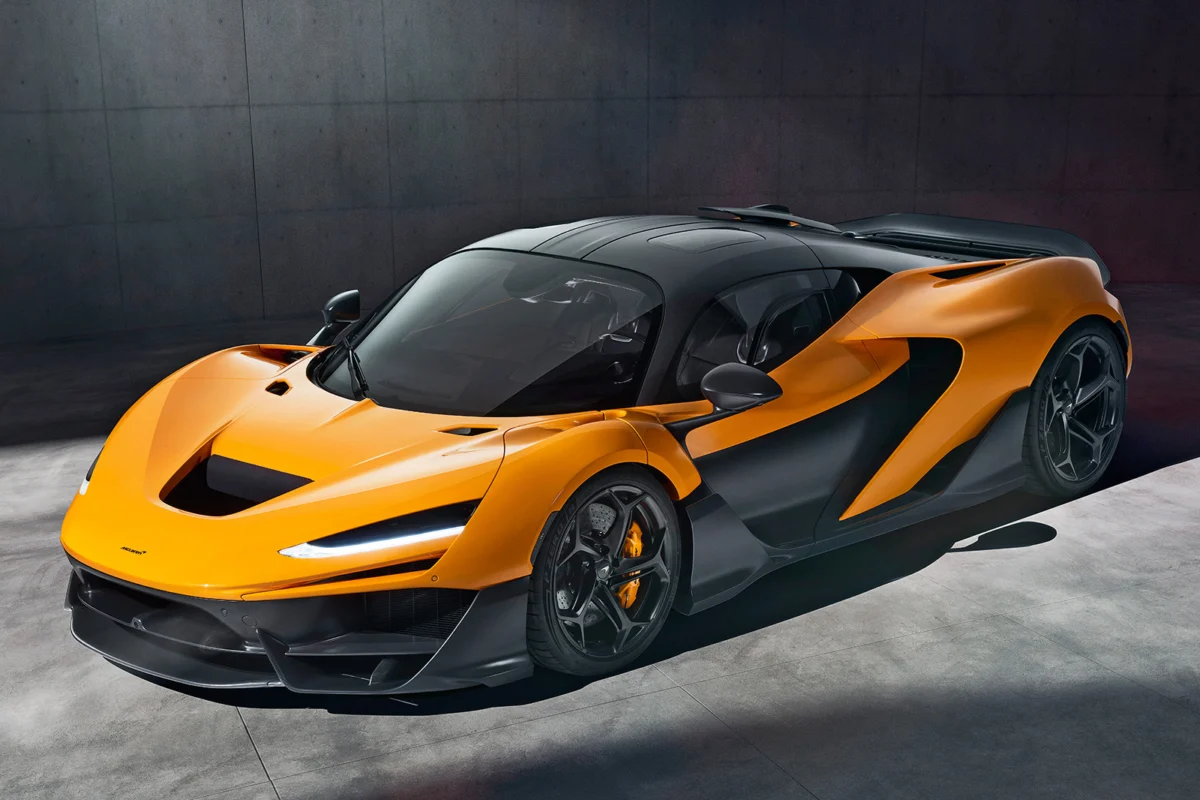

In 2018, McLaren opened the MCTC in Sheffield, a £50 million facility dedicated to the research and manufacture of lightweight materials. The establishment of this center allowed McLaren to move production of its carbon fiber tubs from external suppliers in Europe to an in-house operation in the United Kingdom. It is within this facility that ART technology was refined for automotive use, culminating in its application in the latest generation of McLaren vehicles, including the recently unveiled McLaren W1.
Comparative Data and Efficiency Gains
The shift to ART technology provides measurable improvements over traditional manufacturing techniques. Data released regarding the development of the McLaren W1 highlights the tangible benefits of the process. One of the first components to utilize ART was the fixed plane within the vehicle’s active front wing. According to engineering reports, the ART-produced component exhibited a 10% increase in stiffness compared to an equivalent part made using standard prepreg methods.
Beyond structural performance, the efficiency of the ART process represents a major advancement in sustainable manufacturing. Traditional carbon fiber layup can result in material waste exceeding 25% due to the need to cut shapes from large rolls of fabric. Because ART uses narrow tapes applied precisely to the mold, the "buy-to-fly" ratio—the correlation between the weight of the raw material purchased and the weight of the finished part—is significantly improved. McLaren reports that up to 95% of the carbon fiber tape used in the ART process ends up in the final component. This reduction in waste not only lowers the environmental footprint of production but also mitigates the high costs associated with raw carbon fiber precursors.
The Sheffield Hub and Aerospace Synergy
The development of ART at the McLaren Composites Technology Centre underscores a broader trend of cross-industry technology transfer. The aerospace industry has long used automated tape laying (ATL) and automated fiber placement (AFP) for the Boeing 787 Dreamliner and the Airbus A350 to ensure the structural integrity of massive pressurized cabins.
By bringing this technology to Sheffield, McLaren has created a localized center of excellence that bridges the gap between aerospace precision and automotive production speeds. The MCTC works in proximity to the University of Sheffield’s Advanced Manufacturing Research Centre (AMRC), fostering a collaborative environment where materials science can be accelerated.
The move to bring composite production in-house via the MCTC was a strategic decision to control the entire intellectual property chain of the chassis. By mastering ART, McLaren is no longer dependent on the standard offerings of external carbon fiber suppliers, allowing them to iterate on chassis designs much faster than competitors who rely on outsourced manufacturing.
Official Responses and Strategic Implementation
While McLaren has been transparent about the success of ART in specific components like the W1’s aero elements, the company has remained strategic regarding the timeline for full-scale monocoque integration. Last year, the firm indicated that the ultimate goal was to move from individual components to the entire primary structure of the car.
Industry analysts suggest that the "silence" on the current status of ART-integrated monocoques may point to the complexities of scaling the process for larger, more three-dimensionally complex shapes. However, the performance of the W1 suggests that the technology is already deeply embedded in the company’s flagship development programs. Internal sources suggest that the precision of ART is essential for meeting the increasingly stringent weight targets required to offset the mass of hybrid powertrains and battery systems.
Engineering leads at McLaren have previously noted that the goal of ART is not just to make cars lighter, but to "democratize" the use of carbon fiber within their lineup. By reducing the labor-intensive nature of hand-laying fabric and minimizing material waste, the cost per unit decreases, potentially allowing the technology to trickle down from ultimate-series cars to more accessible models in the McLaren portfolio.
Broader Impact and Industry Implications
The implications of McLaren’s ART technology extend beyond the confines of the supercar market. As the automotive industry shifts toward electrification, the "weight penalty" of heavy battery packs has become a primary concern for engineers. Lightweighting is no longer just about top-speed performance; it is a critical factor in maximizing the range and efficiency of electric vehicles (EVs).
If McLaren successfully proves the scalability of ART, it could provide a blueprint for other high-end manufacturers looking to utilize carbon fiber more economically. The reduction in waste to 5% is particularly relevant in the context of global sustainability goals and the rising cost of raw materials.
Furthermore, the increased stiffness-to-weight ratio provided by ART allows for thinner structural walls without sacrificing safety. In a crash structure, the ability to direct fibers along the exact path of expected impact forces could lead to safer vehicles that occupy a smaller physical footprint.
In conclusion, the Automated Rapid Tape process represents a vital evolution in automotive composite science. By looking toward the skies—specifically the manufacturing techniques of modern aviation—McLaren has found a way to rejuvenate a technology that many assumed had reached its limit. As the MCTC continues to refine these robotic processes, the boundary between aerospace engineering and automotive manufacturing will continue to blur, resulting in a new generation of vehicles that are stronger, lighter, and produced with unprecedented levels of efficiency. The McLaren W1 is merely the first high-profile testament to a technological shift that may eventually redefine the structural standards of the entire high-performance automotive sector.
